Specialty Microscopes
BD Pathway1&2
Current Status: Fully Operational
Resource Links:
- BD Pathway Training Manual
- BD Filter Chart
- Training Videos
- Microscope location - Room 6.033
- Make a Booking
Room 6.033 - Custom Inverted Microscope Stand with Hamamatsu Orca CCD camera
Inverted widefield microscope with Dual Mercury lightsources, high speed filter wheels and CCD camera. Suited for imaging fixed samples on slides, samples with low fluorescence and live imaging.
Features Include:
- Fully motorised X-Y-Z stage
- CO2 and temperature incubation for live cells and tissue
- Tiled imaging
- Multi-position imaging
Transmitted Light: 10W LED Lamp
Reflected Light: Olympus Mercury White Lightsource
Objectives:
Position
Objective
Magnification
N.A.
Immersion
W.D. (mm)
Type
Type
Thread
1
Plan Apochromat
4x
0.5
Dry
2
PhL
ADL
M27
2
Plan Apochromat
10x
0.75
Dry
0.5
Ph1
M27
3
Plan Apochromat
20x
0.75
Dry
0.4
Ph2
ADL
M27
4
Plan Apochromat
40x
0.95
Dry
0.2
DIC I
M27
Fluorescent Filter Sets:
Position
Name
Excitation
Dichroic
Emission
Suitable Dyes
1
DAPI - 5060C
377/50
409LP
447/60
DAPI, Hoechst
2
CFP - 2432C
438/24
458LP
483/32
CFP, Cerulean
3
GFP-3000B
488/10
505LP
530/60
GFP, A488
4
mCherry LP
560/20
580LP
585LP
mCherry, Cy3
5
-
-
-
6
-
-
-
Computer:
Dell PC - 3GHz Xeon Processor - 8GB RAM - 256GB nVidia Quadro GPU
1TB Raid Array
30" LCD Monitor
Software:
Pathway
Accessories:
Incubation chamber with CO2 and Temperature control
Current Status: Fully Operational
Resource Links:
- BD Pathway Training Manual
- BD Filter Chart
- Training Videos
- Microscope location - Room 6.033
- Make a Booking
Room 6.033 - Custom Inverted Microscope Stand with Hamamatsu Orca CCD camera
Inverted widefield microscope with Dual Mercury lightsources, high speed filter wheels and CCD camera. Suited for imaging fixed samples on slides, samples with low fluorescence and live imaging.
Features Include:
- Fully motorised X-Y-Z stage
- CO2 and temperature incubation for live cells and tissue
- Tiled imaging
- Multi-position imaging
Transmitted Light: 10W LED Lamp
Reflected Light: Olympus Mercury White Lightsource
Objectives:
| Position | Objective | Magnification | N.A. | Immersion | W.D. (mm) | Type | Type | Thread |
| 1 | Plan Apochromat | 4x | 0.5 | Dry | 2 | PhL | ADL | M27 |
| 2 | Plan Apochromat | 10x | 0.75 | Dry | 0.5 | Ph1 | M27 | |
| 3 | Plan Apochromat | 20x | 0.75 | Dry | 0.4 | Ph2 | ADL | M27 |
| 4 | Plan Apochromat | 40x | 0.95 | Dry | 0.2 | DIC I | M27 |
Fluorescent Filter Sets:
| Position | Name | Excitation | Dichroic | Emission | Suitable Dyes |
| 1 | DAPI - 5060C | 377/50 | 409LP | 447/60 | DAPI, Hoechst |
| 2 | CFP - 2432C | 438/24 | 458LP | 483/32 | CFP, Cerulean |
| 3 | GFP-3000B | 488/10 | 505LP | 530/60 | GFP, A488 |
| 4 | mCherry LP | 560/20 | 580LP | 585LP | mCherry, Cy3 |
| 5 | - | - | - | ||
| 6 | - | - | - |
Computer:
Dell PC - 3GHz Xeon Processor - 8GB RAM - 256GB nVidia Quadro GPU
1TB Raid Array
30" LCD Monitor
Software:
Pathway
Accessories:
Incubation chamber with CO2 and Temperature control
FLIM/FRET
Current Status: Fully Operational
Resource Links:
- FLIM/FRET Training Manual
- Training Videos
- Microscope location - Room 2.138
- Make a Booking
Room 2.138 - Olympus IX71 - Inverted Microscope Stand with Intensified CCD camera
Inverted widefield microscope with Mercury and LED lightsources and CCD camera. Suited for imaging fixed samples on slides, samples with low fluorescence and live imaging.
Features Include:
- Manual X-Y-Z stage
- CO2 and temperature incubation for live cells and tissue
- Tiled imaging
- Multi-position imaging
Transmitted Light: 100W Halogen Lamp
Reflected Light: Olympus Mercury White Lightsource, Lambert LED Lightsource
Objectives:
Position
Objective
Magnification
N.A.
Immersion
W.D. (mm)
Type
Type
Thread
1
Plan Apochromat
4x
0.5
Dry
2
PhL
ADL
M27
2
Plan Apochromat
10x
0.75
Dry
0.5
Ph1
M27
3
Plan Apochromat
20x
0.75
Dry
0.4
Ph2
ADL
M27
4
Plan Apochromat
40x
0.95
Dry
0.2
DIC I
M27
Fluorescent Filter Sets:
Position
Name
Excitation
Dichroic
Emission
Suitable Dyes
1
DAPI - 5060C
377/50
409LP
447/60
DAPI, Hoechst
2
CFP - 2432C
438/24
458LP
483/32
CFP, Cerulean
3
GFP-3000B
488/10
505LP
530/60
GFP, A488
4
mCherry LP
560/20
580LP
585LP
mCherry, Cy3
5
-
-
-
6
-
-
-
Computer:
Dell PC - 3GHz Xeon Processor - 8GB RAM - 256GB nVidia Quadro GPU
1TB Raid Array
Dual 27" LCD Monitors
Software:
Lambert Intruments
Accessories:
Incubation chamber with CO2 and Temperature control
Current Status: Fully Operational
Resource Links:
- FLIM/FRET Training Manual
- Training Videos
- Microscope location - Room 2.138
- Make a Booking
Room 2.138 - Olympus IX71 - Inverted Microscope Stand with Intensified CCD camera
Inverted widefield microscope with Mercury and LED lightsources and CCD camera. Suited for imaging fixed samples on slides, samples with low fluorescence and live imaging.
Features Include:
- Manual X-Y-Z stage
- CO2 and temperature incubation for live cells and tissue
- Tiled imaging
- Multi-position imaging
Transmitted Light: 100W Halogen Lamp
Reflected Light: Olympus Mercury White Lightsource, Lambert LED Lightsource
Objectives:
| Position | Objective | Magnification | N.A. | Immersion | W.D. (mm) | Type | Type | Thread |
| 1 | Plan Apochromat | 4x | 0.5 | Dry | 2 | PhL | ADL | M27 |
| 2 | Plan Apochromat | 10x | 0.75 | Dry | 0.5 | Ph1 | M27 | |
| 3 | Plan Apochromat | 20x | 0.75 | Dry | 0.4 | Ph2 | ADL | M27 |
| 4 | Plan Apochromat | 40x | 0.95 | Dry | 0.2 | DIC I | M27 |
Fluorescent Filter Sets:
| Position | Name | Excitation | Dichroic | Emission | Suitable Dyes |
| 1 | DAPI - 5060C | 377/50 | 409LP | 447/60 | DAPI, Hoechst |
| 2 | CFP - 2432C | 438/24 | 458LP | 483/32 | CFP, Cerulean |
| 3 | GFP-3000B | 488/10 | 505LP | 530/60 | GFP, A488 |
| 4 | mCherry LP | 560/20 | 580LP | 585LP | mCherry, Cy3 |
| 5 | - | - | - | ||
| 6 | - | - | - |
Computer:
Dell PC - 3GHz Xeon Processor - 8GB RAM - 256GB nVidia Quadro GPU
1TB Raid Array
Dual 27" LCD Monitors
Software:
Lambert Intruments
Accessories:
Incubation chamber with CO2 and Temperature control
OPT
Current Status: Fully Operational
Resource Links:

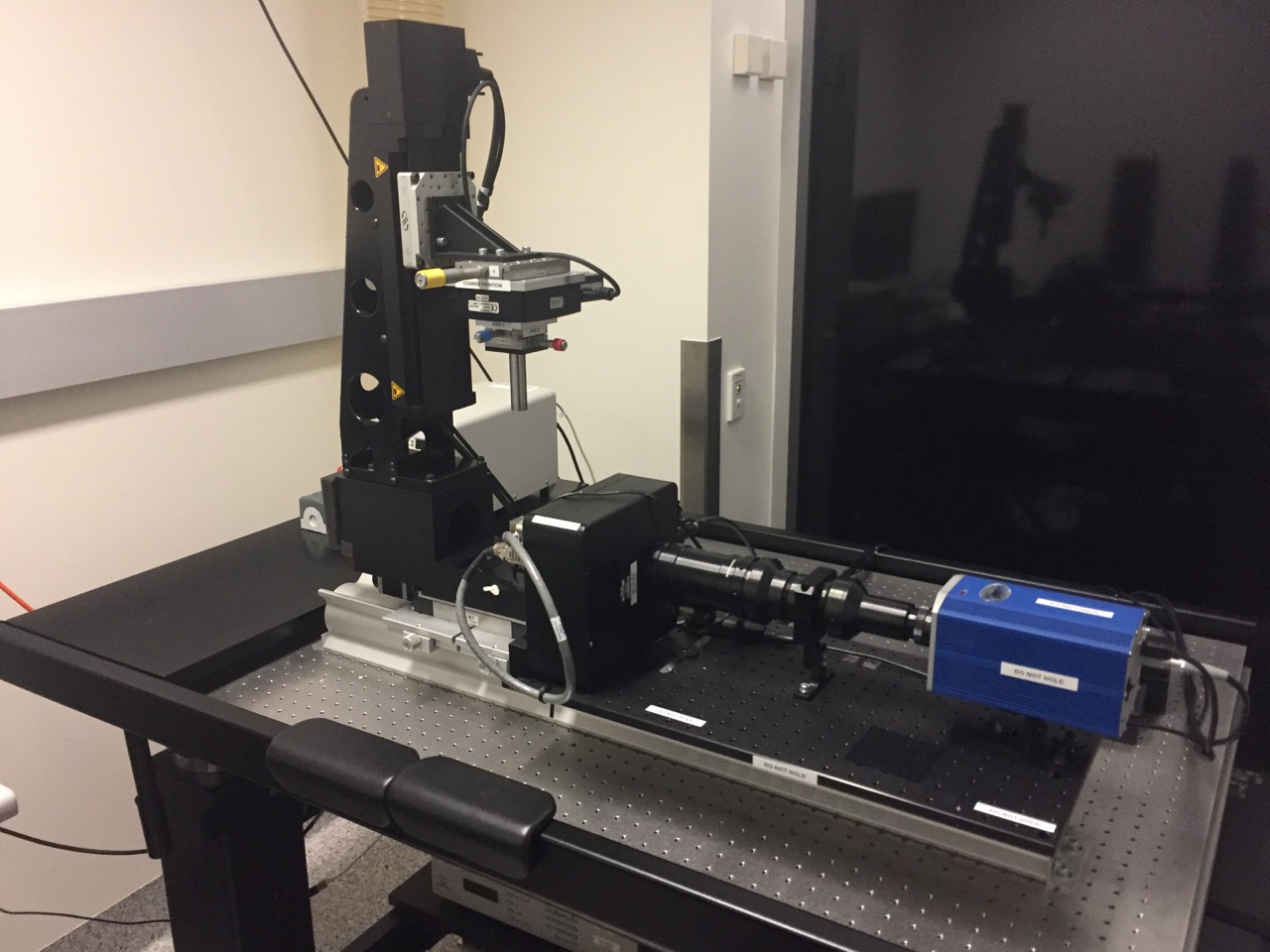

Room 6.025d - Custom Microscope Stand with Photometrics Coolsnap HQ2 CCD camera
Custom widefield microscope with Whitelight Mercury lightsource and CCD camera. Suited for imaging large fixed samples in 3D.
Features Include:
- Fully motorised X-Y-Z stage
Transmitted Light: 100W LED Lamp
Reflected Light: Exfo Xacte 200W Mercury White Lightsource
Objectives:
Position
Objective
Magnification
N.A.
Immersion
W.D. (mm)
Type
Type
Thread
1
Plan Apochromat
0.18x
0.04
Dry
50
2
Plan Apochromat
0.5x
0.1
Dry
45
3
Plan Apochromat
1x
0.2
Dry
40
Fluorescent Filter Sets:
Position
Name
Excitation
Dichroic
Emission
Suitable Dyes
1
DAPI - 5060C
377/50
409LP
447/60
DAPI, Hoechst
2
CFP - 2432C
438/24
458LP
483/32
CFP, Cerulean
3
GFP-3000B
488/10
505LP
530/60
GFP, A488
4
mCherry LP
560/20
580LP
585LP
mCherry, Cy3
5
-
-
-
6
-
-
-
Computer:
Dell PC - 3GHz Xeon Processor - 8GB RAM - 256GB nVidia Quadro GPU
1TB Raid Array
30" LCD Monitor
Software:
OPTiscan
Current Status: Fully Operational
Resource Links:
Room 6.025d - Custom Microscope Stand with Photometrics Coolsnap HQ2 CCD camera
Custom widefield microscope with Whitelight Mercury lightsource and CCD camera. Suited for imaging large fixed samples in 3D.
Features Include:
- Fully motorised X-Y-Z stage
Transmitted Light: 100W LED Lamp
Reflected Light: Exfo Xacte 200W Mercury White Lightsource
Objectives:
| Position | Objective | Magnification | N.A. | Immersion | W.D. (mm) | Type | Type | Thread |
| 1 | Plan Apochromat | 0.18x | 0.04 | Dry | 50 | |||
| 2 | Plan Apochromat | 0.5x | 0.1 | Dry | 45 | |||
| 3 | Plan Apochromat | 1x | 0.2 | Dry | 40 |
Fluorescent Filter Sets:
| Position | Name | Excitation | Dichroic | Emission | Suitable Dyes |
| 1 | DAPI - 5060C | 377/50 | 409LP | 447/60 | DAPI, Hoechst |
| 2 | CFP - 2432C | 438/24 | 458LP | 483/32 | CFP, Cerulean |
| 3 | GFP-3000B | 488/10 | 505LP | 530/60 | GFP, A488 |
| 4 | mCherry LP | 560/20 | 580LP | 585LP | mCherry, Cy3 |
| 5 | - | - | - | ||
| 6 | - | - | - |
Computer:
Dell PC - 3GHz Xeon Processor - 8GB RAM - 256GB nVidia Quadro GPU
1TB Raid Array
30" LCD Monitor
Software:
OPTiscan
